ELM327 car engine diagnostic interface USB - EOBD OBD2, ISO PWM VPW CAN

Benefits

• Save money by reading and clearing fault codes yourself
• Fix faults at home or go to the garage armed with information
• Supports all EOBD/OBDII languages (ISO-9141, ISO-14230 (KWP2000), PWM, VPW and CAN) in a single cable!
• Auto-detection of car protocol
• Use with shareware (freeware) software
• Use with Gendan EngineCheck or VauxCheck Software (£29.95)
• Access engine diagnostic information on all 2001+ petrol and 2004+ diesel UK-sold cars using shareware or EngineCheck software
• Access information on 1997-2003 Vauxhall/Opel cars using Gendan VauxCheck software (please email or see below for more info.)
• This interface uses the ELM 327 v1.2a chip
• USB connection to PC - 1.5M USB cable included
• Small, light-weight, compact design

What can it do?

This interface, when used with PC software, makes a sophisticated car diagnostic tool for home or small garage use. For example, this interface will allow you to:

• Read/clear engine fault codes
• View live data from engine sensors
• View status of Engine Inspection/Maintenance (I/M) self-tests
• View fault code freeze frame data
• Switch off of the 'Check Engine' light
• Display VIN information on supported cars (most 2004 onwards)

Where can I find software?

The following links show some examples of software available for the interface:

• Our EngineCheck or VauxCheck software - please see our other listings for details
• Scantool.net Version 1.13 for Windows http://www.scantool.net/
• ScanMaster Pro Version 1.1 http://www.wgsoft.de/index.php?newlang=english
• PCMScan Version 2.0 http://www.palmerperformance.com/
• Digimoto http://www.digimoto.com/updates.htm
• Link to ELM Electronics website for datasheets on the ELM 327 if you would like to design your own software: http://www.elmelectronics.com/

Technical Information

This interface uses the ELM 327 v1.2a chip, which is the newest addition to the ELM On-Board-Diagnostics (OBD) family.

The ELM327 transparently converts European-On-Board-Diagnostics (EOBD) and On-Board-Diagnostic Generation 2 (OBDII) data into standard ASCII characters, allowing trouble codes and operating parameters to be easily retrieved without the need for special software or hardware. No knowledge of data formatting, error checking, bus initiation etc. is needed either, as the ELM327 handles all of that for you. You don't even need to know what protocol your car 'speaks', as this IC automatically detects that for you, too.

The ELM 327 provides CAN (ISO 15765-4), as well as SAE J1850 PWM, SAE J1850 VPW, ISO 9141-2 and ISO 14230-4 support. This new interface takes the best of the ELM320, the ELM322 and the ELM323 interfaces, improves on them and adds four CAN protocols!

The CAN diagnostic protocol is currently used on a wide range of 2004+ cars in Europe. Guidelines are in place for all manufacturers to use the CAN diagnostic protocol by 2008, making this interface a good investment for the future.

This interface offers USB connection to the PC at the highest 38400bps baud-rate.

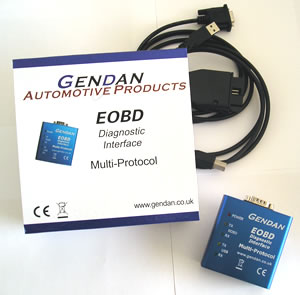

• ELM 327 v1.2a Diagnostics interface
• 16-pin EOBD/OBDII interface cable (1.4 metre)
• USB cable (1.5 metre)

  NOTE: Software is not included - this package contains the interface and cable only. There are several pieces of software available to download for free, or the Award-winning Gendan EngineCheck Software is available to purchase from us (we also have VauxCheck software available).

Additional information

Together with software, this interface can read/clear codes from EOBD diagnostics systems (this covers engine, powertrain and emissions faults). It will not read/clear codes from other systems, e.g. SRS, ABS or Suspension systems.

Alternative Tools available

Please see our other listings to see more of the tools we sell.

We stock combined cable and software packages as well as handheld car diagnostic units.

A Word About Us

We have worked within the UK and European Car Diagnostics market since 2001 and have built up a wealth of experience and product knowledge. We sell mainly through our website, but are also listing on auction sites to help generate interest in this relatively new field and market our products to a wider audience.

All information here is the result of our experience and not just copied from someone elses site.

We are honest in our approach to stating what our tools can do and which cars they will work with. Please email if you have any queries.


Shipping Information

Products are shipped from the UK, so NO import duties or taxes when items are delivered.

We ship orders within one working day of receiving Paypal or credit card payments (please allow 3 working days for cheque payments to clear - Paypal eCheques tend to take one to two weeks to clear).

Orders received before 2.00 p.m. will usually be shipped same working day (Monday to Friday).

This product will be shipped by Royal Mail 1st Class 'Signed-For' mail. In most cases this will get to you next working day, but if you require guaranteed next working day delivery please contact us.


Payment Information

Payments can be made by Paypal or by credit/debit card over the phone.
Failure to pay will result in negative feedback being left and the item being relisted.
We are a UK Limited Company and provide a VAT receipt for the product.

Returns

If you have a problem with your item, please email... the products are rarely faulty and many issues can be resolved quickly and easily.

If you wish to return an item, please contact us by email first.

Unwanted goods can be returned within 7 days of receipt provided that they are returned 'as new' (i.e. unopened and undamaged). The customer must pay for safe carriage of the item back to us (i.e. a 'signed for' or trackable postage method).

Any product returned to us must be returned with all associated items originally sent as part of the product and in the same packaging, unless otherwise agreed with Gendan Ltd.
